PAN

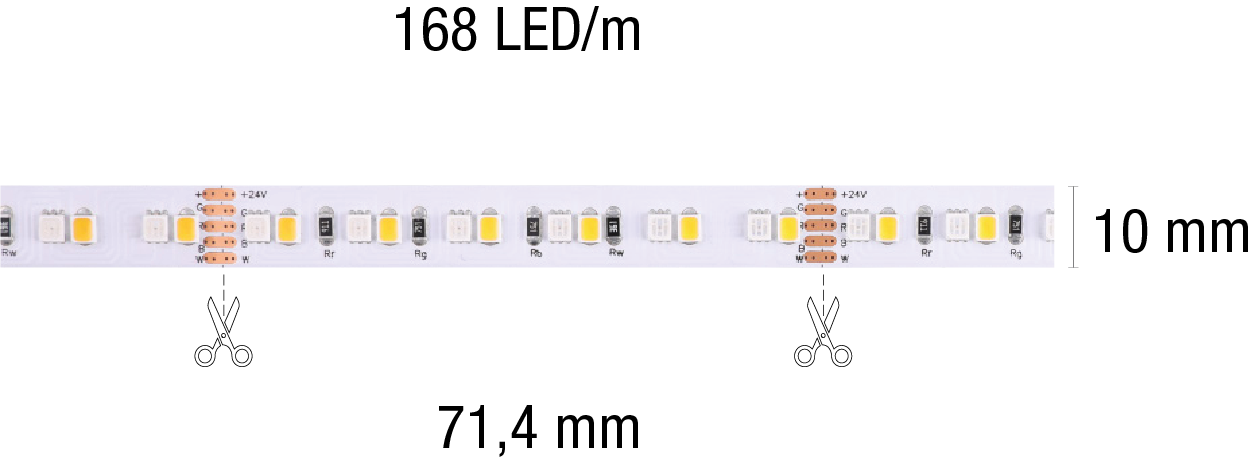

RGB+W 19,2 W/M - CUT 71,44 MM.

STP31468

In the RGB + W models, the most important feature is the use of LED 2110, the latest generation emitter whose extremely small size has an assortment within the extremely close package: the result is a perfect mix of color for a visual perception of the color without uncertainties.

PRODUCTS CHARACTERISTICS

power:

19,2 W/m

ELECTRICAL CHARACTERISTICS

feeding:

24 V DC

insulation class:

Class III

MECHANICAL CHARACTERISTICS

Product IP rate:

IP20

HOLE RECESS DIMENSIONS

LED SOURCE DETAILS

led source type:

SMD LED - 2835

Color temperature:

RGB+W 3000K

DRIVER CHARACTERISTICS

LIGHTING DETAILS

PACKING DETAILS

WARRANTY

Drivers e Controlli
Sistemi di controllo RGB+W
Smartphone WI-FI Voice Control

Remote control + WI-FI ; 24V AC ; Class III

60 x 20,5 x 9 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Kit

Remote control + WI-FI ; 24V AC ; Class III

60 x 20,5 x 9 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Smartphone WI-FI Voice Control

WI-FI Tuya App ; 5 x 72W ; 24V AC ; 5A ; Barrier - free space 30m

114 x 38 x 20 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Smartphone WI-FI Voice Control

WI-FI Tuya App + push ; max 720W ; 24V DC ; Class II

179 x 56 x 30 mm

Drivers e Controlli
Sistemi di controllo RGB+W

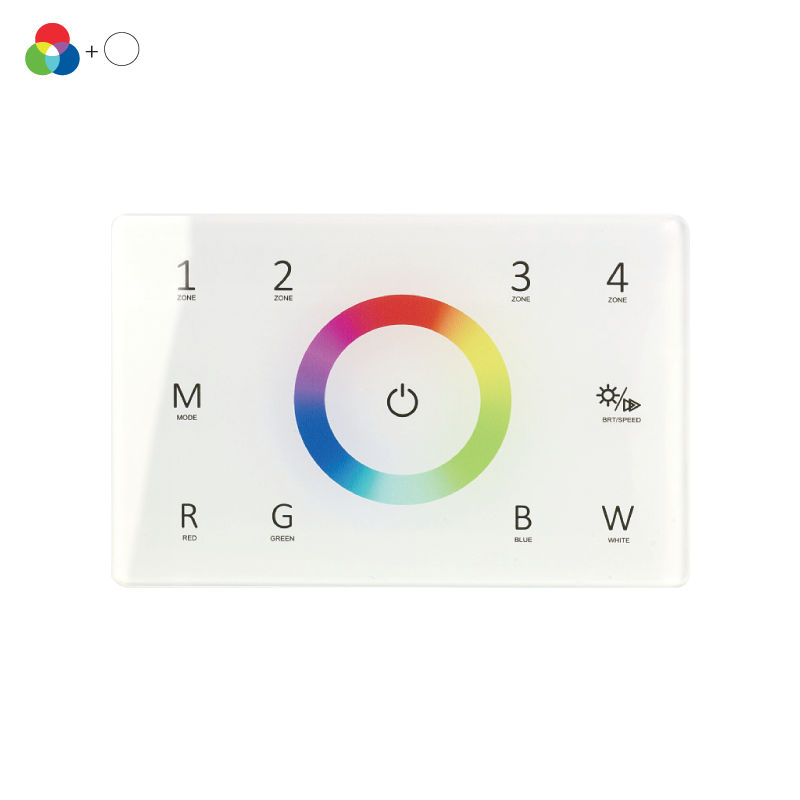

Touch Panel

DMX512, RF 2.4GHz / RF remote control ; 85-265V AC ; Class II ; IP20

120 x 80 mm. h 37 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Touch Panel

DMX512 ; 4x 120 W ; 24V DC ; 4 x 24V DC ; 4CH, 5A/CH ; Class II ; IP20

170 x 50 mm. h 23 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Push Button

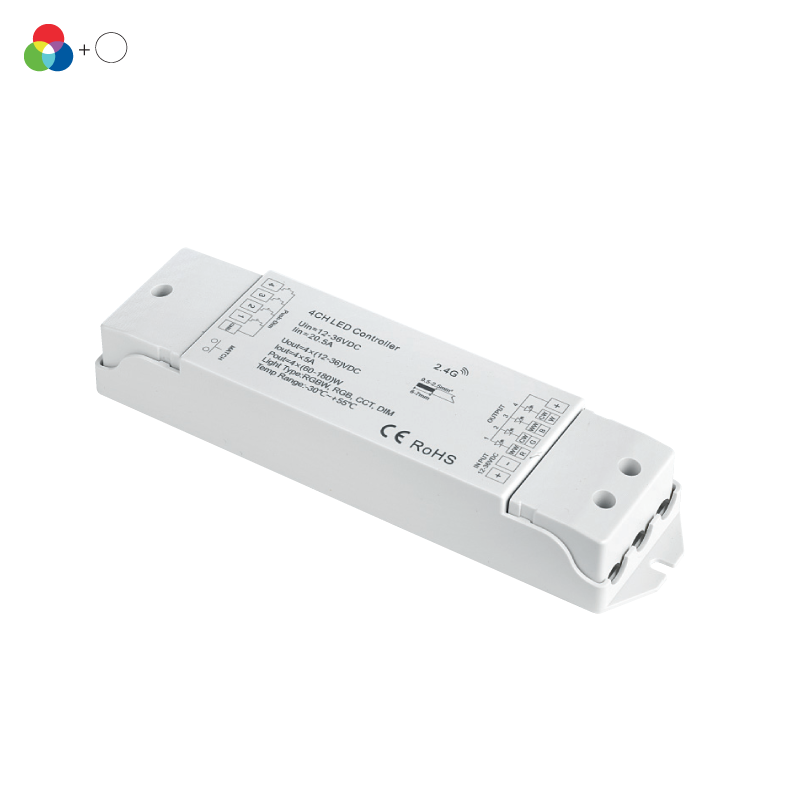

RF remote control / Push Dim. ; 4 x 180 W ; 24V DC ; 4CH, 5A/CH ; Class II ; IP20

175 x 45 mm. h 27 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Kit

Remote control ; 192 W ; 24V DC ; 4x 2A ; Class III

45 x 13 mm. h 5 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Smartphone / Bluetooth

Smartphone Bluetooth ; 24V DC ; 3x3A + 5A ; Class III ; IP63

86 x 21 mm. h 8,5 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Push Button

2x N.O. Push Buttons ; max 240 W ; 24V DC ; 12 / 24V DC ; 4 x 5 A (max 10A tot.) ; Class III ; IP20

88 x 54 mm. h 26 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Push Button

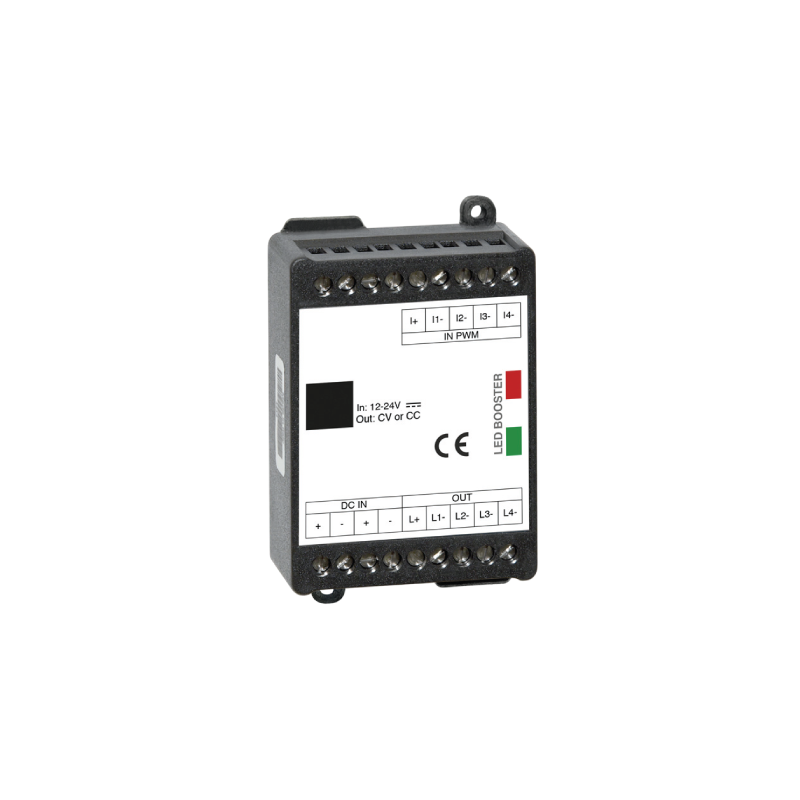

D-PWM ; max 240 W ; 24V DC ; 12 / 24V DC ; 4 x 5 A (max 10A tot.) ; Class III ; IP20

89 x 54 mm. h 26 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Multi Control

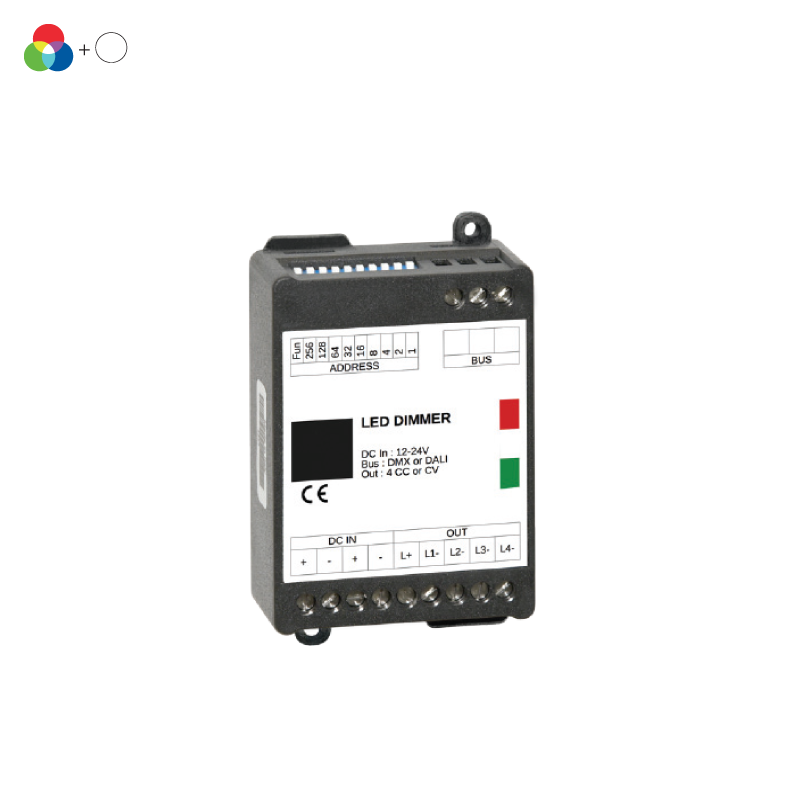

BUS DALI / Push N.O. / 0...10V - 1...10V ; max 480 W ; 24V DC ; max 4x 5 A ; Class III ; IP10

72 x 92 mm. h 62 mm.

Drivers e Controlli
Sistemi di controllo RGB+W
Multi Control

BUS DMX / Push N.O. / 0...10V - 1...10V ; max 480 W ; 24V DC ; max 4x 5 A ; Class III ; IP10

72 x 92 mm. h 62 mm.
