Bart

Bart series of inground luminaires stands out for the high quality of the materials; made of die-cast aluminum, they are equipped with a rings made in AISI 316L stainless steel, particularly resistant to high concentrations of iodine and chlorine in the air, i.e. the areas close to the sea: the steel ring is equipped with transparent tempered glass 10 mm. thick, mounted flush to avoid stagnation of dust and soil; the Bart series luminaires are wired with a specific H05RN-F neoprene outdoor cable and can be installed in the ground without opening the optical compartment; the adjustable versions can be aimed by a special ring nut external to the optical compartment, a solution that allows faster installation without the need to opening the fixture, thus maintaining a more secure IP grade seal over time. All the fixtures are supplied with the relative PVC sleever.

Bart Multiled

The Bart Multiled series includes fixed and adjustable versions, both complete with AIS 316L steel ring particularly resistant to high concentrations of iodine and chlorine in the air. The adjustable versions are equipped with a specific device external to the optical compartment for aiming adjustment; this allows you to direct the light beam emitted during the installation phase without having to open the fixture, avoiding the ingress of moisture into the optical compartment and the consequent formation of condensation on the internal surface of the glass. All the Bart Multiled series fixtures are supplied with a special PVC sleever and wired with a neoprene H05RN-F power cable 1 meter lenght.

Bart CoB

The Bart CoB series is equipped with an AISI 316L steel ring complete with transparent tempered safety glass, particularly resistant to high concentrations of iodine and chlorine in the air. The body is made of die-cast anodized aluminum and is supplied with a PVC cockpit with 2 lateral holes for through connection. Bart is wired with neoprene H05RN-F power cable 1 meter lenght. The versions equipped with 1200 and 1600 lumen CoB LEDs are available with 22° and 38° optics.

Lola

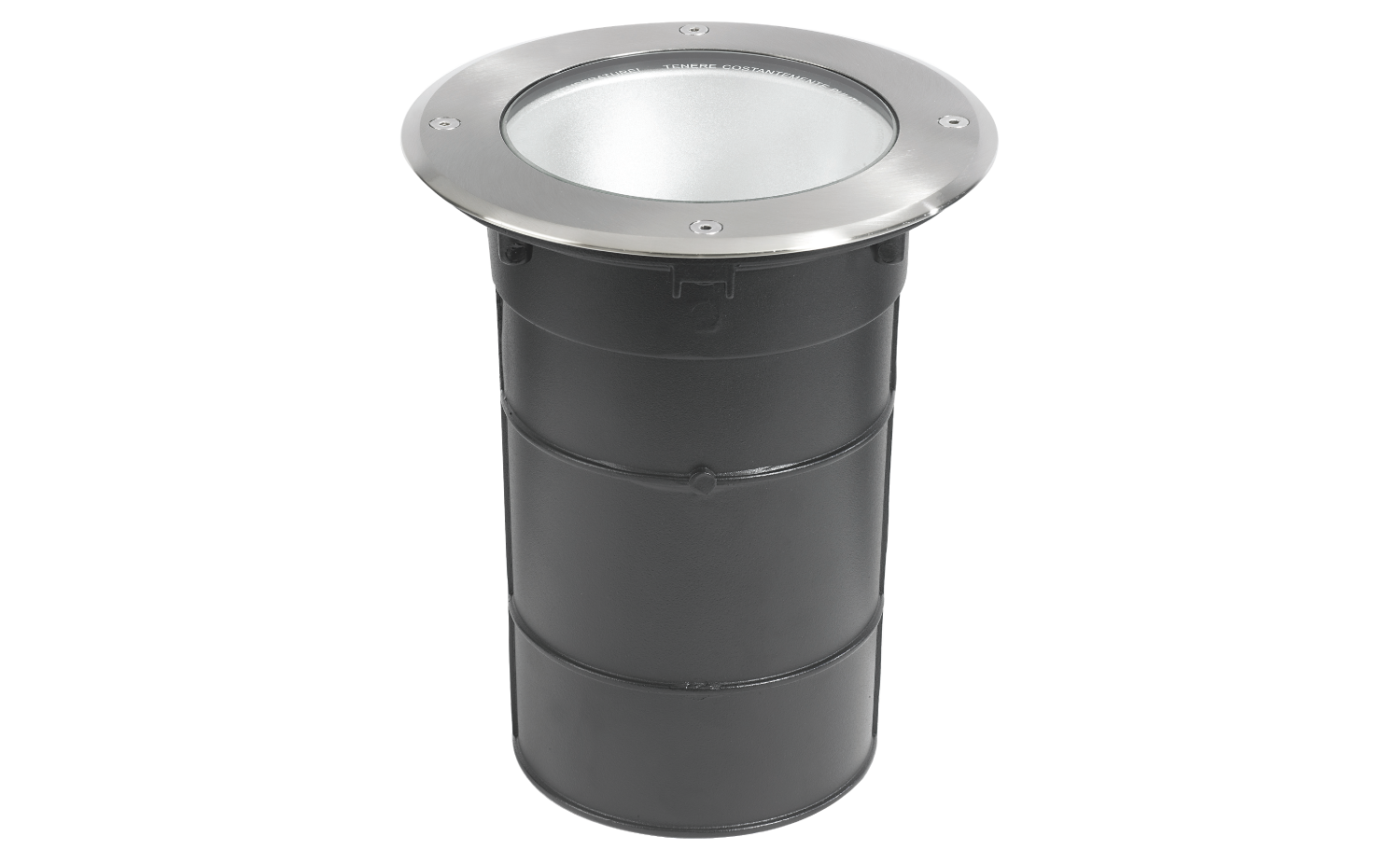

Lola is a recessed luminaire for outdoor use in the ground: it illuminates with a wide and diffuse beam thanks to its diffusing optics and it is equipped with an E27 fitting for FBT compact fluorescent lamps or LED sources equivalent. The main body is made of die-cast aluminum and the front ring is in AISI 304 brushed steel complete with transparent tempered glass flush mounted on the ring to avoid unwanted deposit of soil or dust. The ring on the body of the device is closed thanks to four allen screws which guarantee the waterproofness of the optical compartment. Lola is flush recessed with the ground thanks to the special support on the PVC supplied sleever, and the flared edge of its ring prevents accidental tripping; The sleever provided both horizontal and vertical through-wiring.

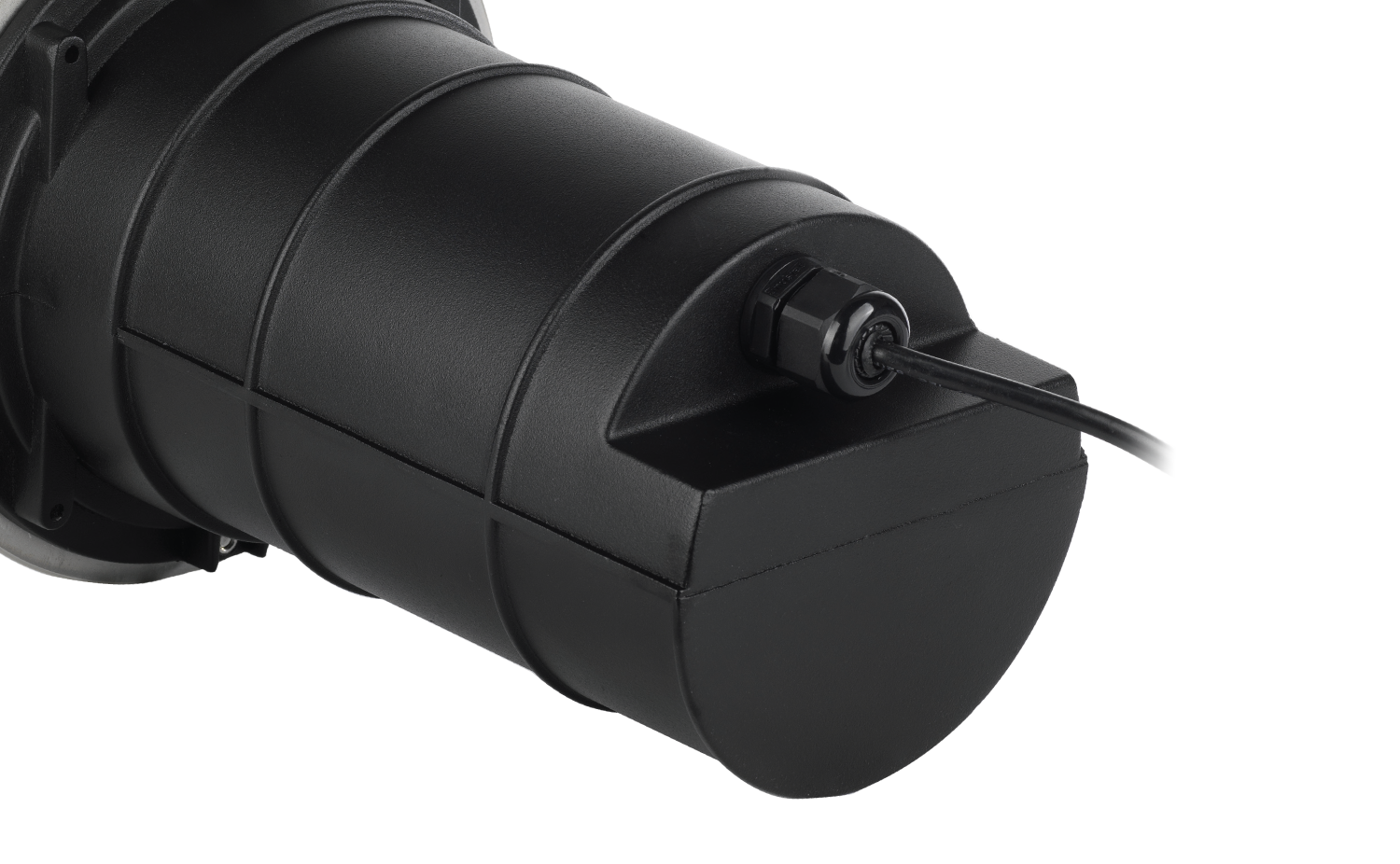

Equipped with cable gland M18 x 1,5

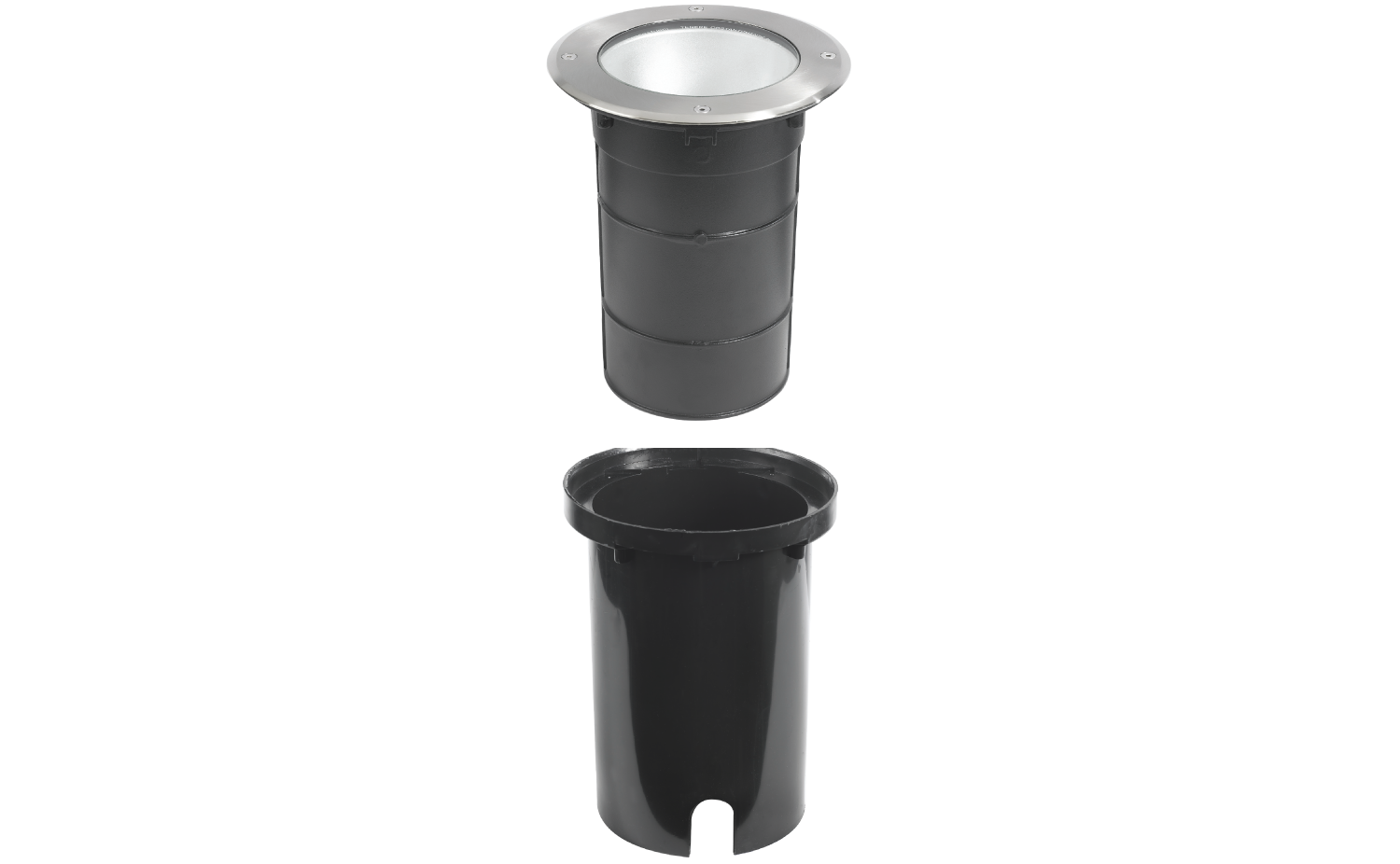

PVC sleever drilled for lateral connection

Hole Ground

Hole Ground is a family of IP67 recessed luminaires ideal for lighting areas and outdoor paths. The luminaire body is made of die-cast painted aluminum and complete with front made of transparent tempered glass 4 mm. thick; the surface below the front part is painted in matt white or matt black, and characterizes the aesthetic appearance of the fixture once installed. The body of Hole Ground is installed perfectly flush with the ground by staying in a special steel housing, made in the sleever supplied. The fixture is wired with a H05RN-F 3x 1.0 mm2 neoprene power cable 40 cm. meter length.

All fixtures of the Hole Ground series are equipped with a PVC cockpit complete with a special steel housing to install the appliance perfectly flush with the ground. The supplied suction cup facilitates the extraction of the device from the sump in maintenance operations.

Nip

Nip is a ground recessed luminaire ideal for outdoor lighting systems where white or RGB light effects are required. Made of die-cast aluminum, it has a front in AISI 316L steel, particularly resistant to the high concentrations of iodine and chlorine in the air, typical of marine areas; The round or square steel ring is complete with flush mounted transparent glass, in order to limit the deposit of soil and dust. Nip can be feeded at 24V DC in the RGB Power Led version and at mains voltage in the versions equipped with CoB Led for white light. It is supplied with a special PVC sleever with provision for 4-way lateral connection and is wired with neoprene H05RN-F power cable 1 meter lenght.

Microled / Miniled

To be encased in floors and is watertight. It can be used both indoors and outdoors. Made in aluminium with front AISI 304 steel ring. Protection glass with a slightly satin finish. It comes with an installation kit that includes threaded ring or steel spring on panels and PBT formwork for brickwork installations.

Microled

Miniled

Oblò Micro

Oblò Micro is a recessed floor luminaire for outdoor environments; it can be walked on and is particularly indicated as a path marker along external paths; the body is in die-cast aluminum and is completed with a round or square ring made of AISI 304 stainless steel: its reduced thickness and its flared edge prevent accidental tripping. The LED source with included GX53 socket emits softly diffused light, eliminating any form of glare from any viewing angle. Four allen screws ensure the correct coupling between the ring and the body while maintaining the impermeability of the optical compartment even after the source is replaced. Oblo’ Micro is equipped with a double cable gland for In/Out connections and is supplied with the concerning PVC sleever.

PVC sleever drilled for lateral connection



Double cable gland for direct In/Out connections without remote junction box



King

King is a walkable recessed floor fixtures ideal for outdoor installations; complete with round or square AISI 304 stainless steel ring, particularly thin and with flared edge to prevent accidental tripping. Its GU10 socket allows the use of interchangeable LED lamps (not included) by choosing the opening beam according to the selected source. The tightness of the fixture is guaranteed by the coupling between the ring and the body obtained with four allen screws which guarantee the waterproofness of the optical compartment even after changing the lamp. The high build quality and interchangeability of the lamp make King a particularly long-lasting luminaire. King is supplied with the relative PVC cockpit.

PVC sleever drilled for lateral connection

King is complete with an AISI 304 stainless steel ring which is fixed to the body of the fixture with 4 allen screws in order to guarantee the IP degree tightness even after maintenance and relamping operations. The flush coupling of the transparent glass with the steel ring limits the deposit of soil and dust on the front surface of the fixture and preserves full luminous effect over time.

Gong

Gong is a recessed floor luminaire ideal for outdoor path lighting. Extremely compact, it is made of die-cast aluminum and can illuminate the ground with a beam of grazing light or in one direction or in two opposite directions; the rounded shape of the ring prevents accidental tripping and eliminates direct glare from the source. Gong is wired with a H05RN-F neoprene power cable 1 meter long and is supplied with a PVC sleever complete with cover cap, drilled for through-wiring both horizontally and vertically. The installation can be carried out without having to open the fixture, allowing the waterproofing conditions of the optical compartment to be maintained thus avoiding the formation of condensation inside.

Mono

Dual
